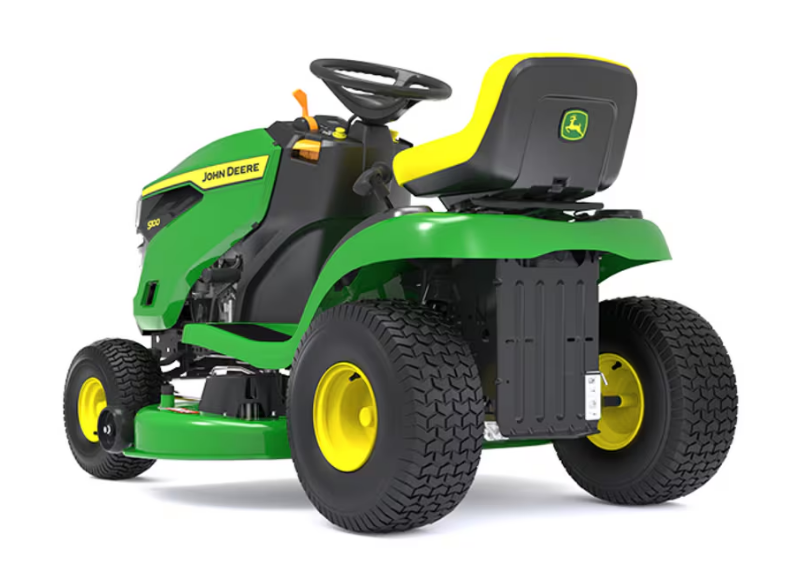

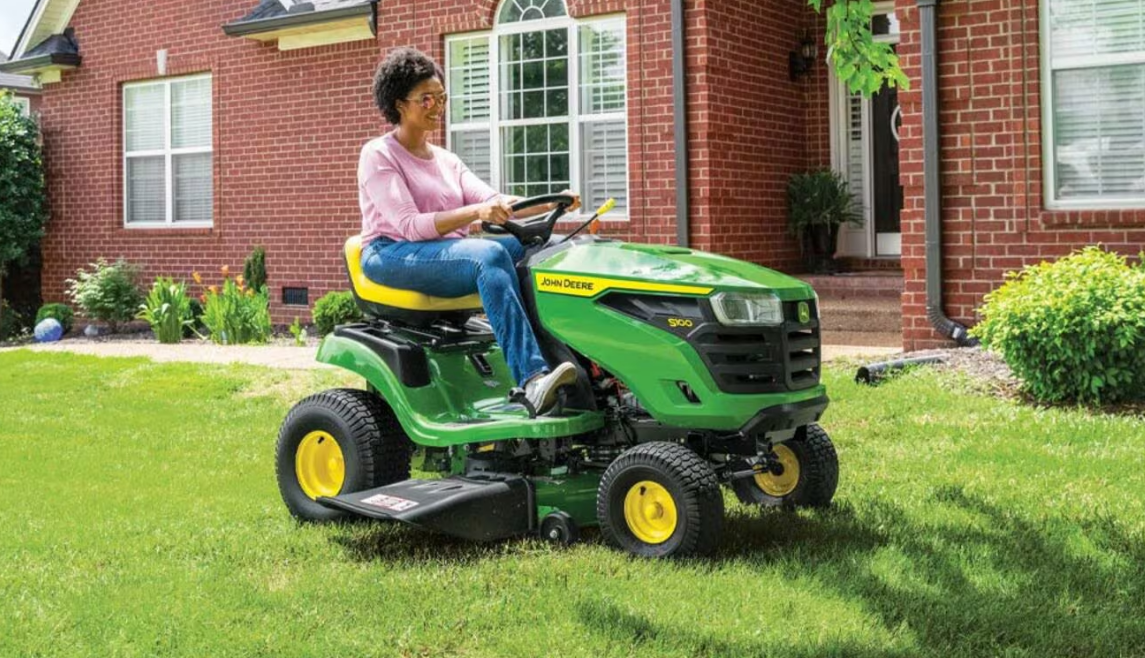

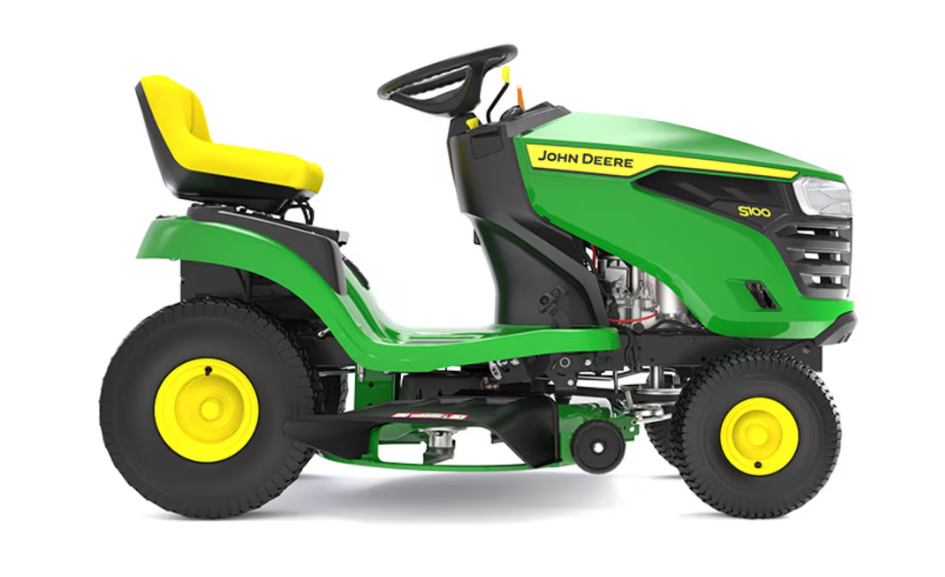

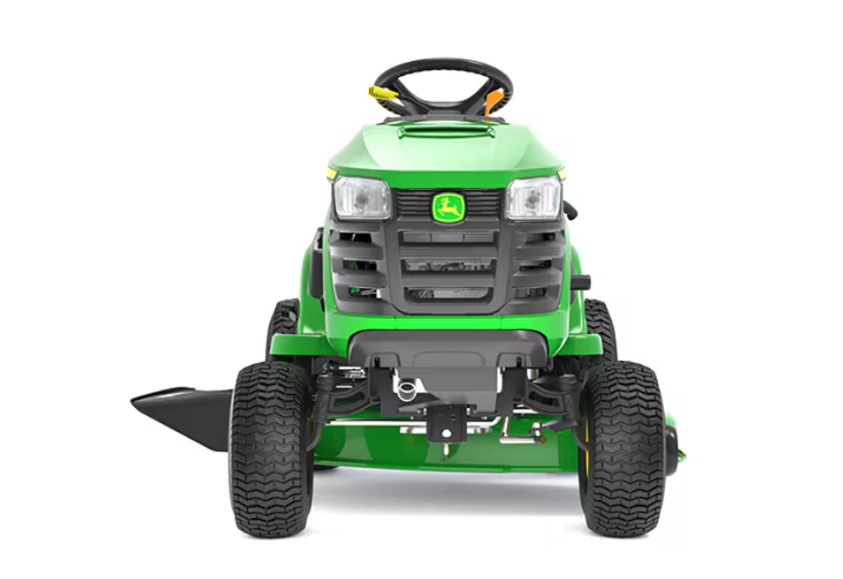

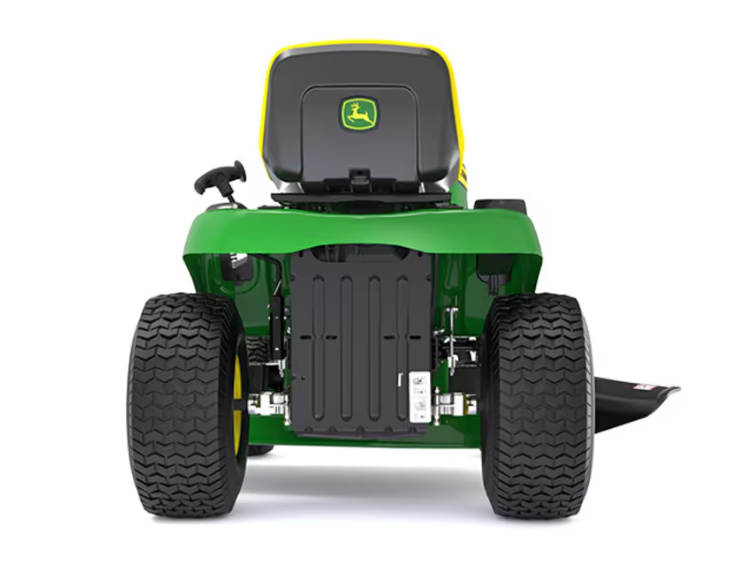

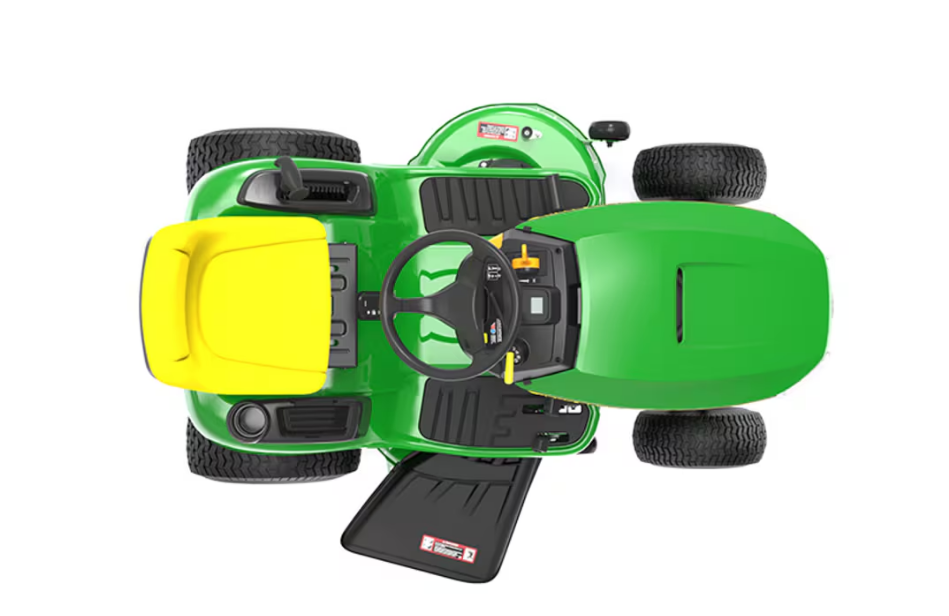

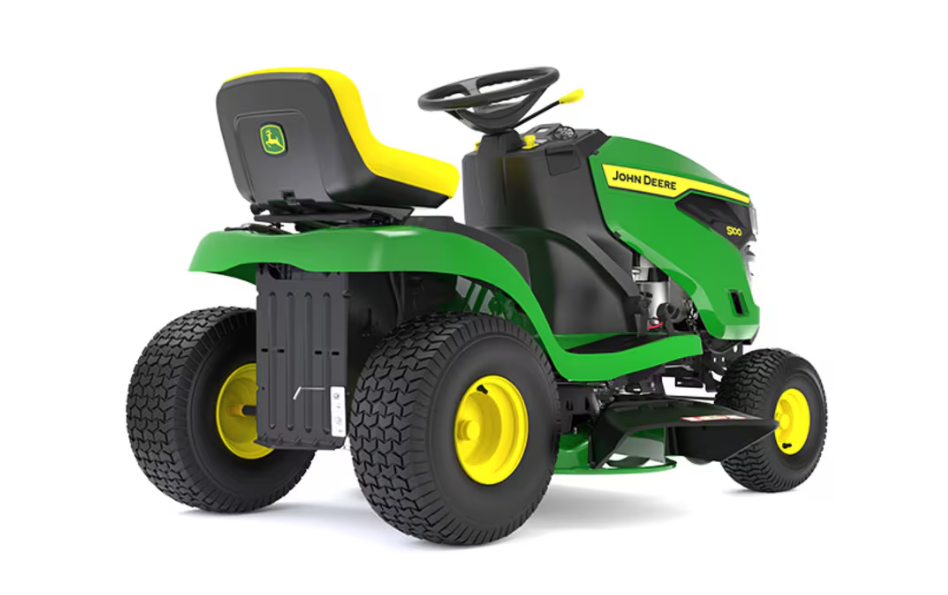

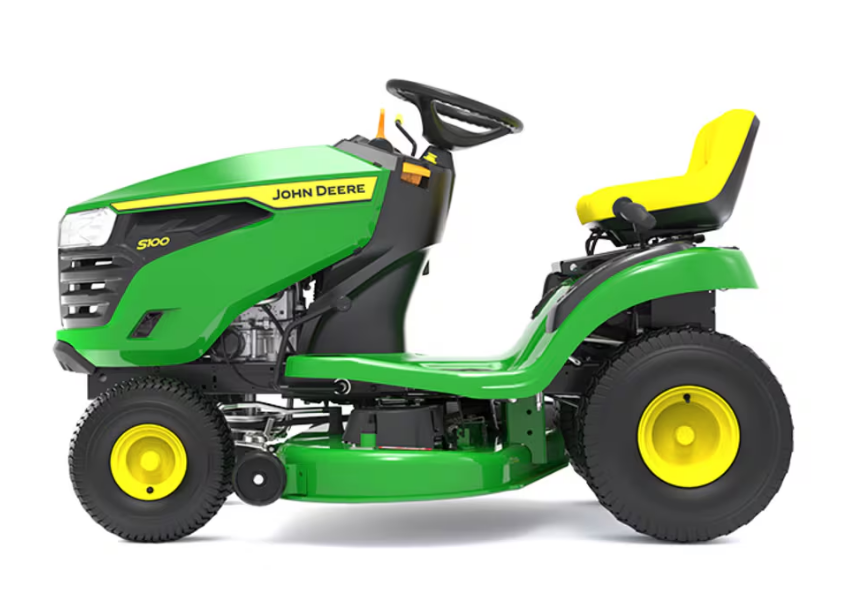

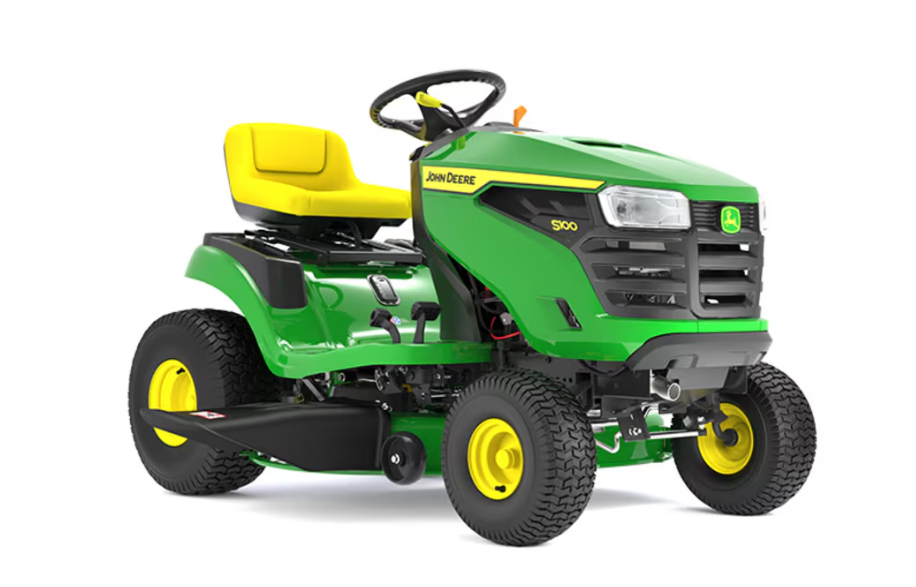

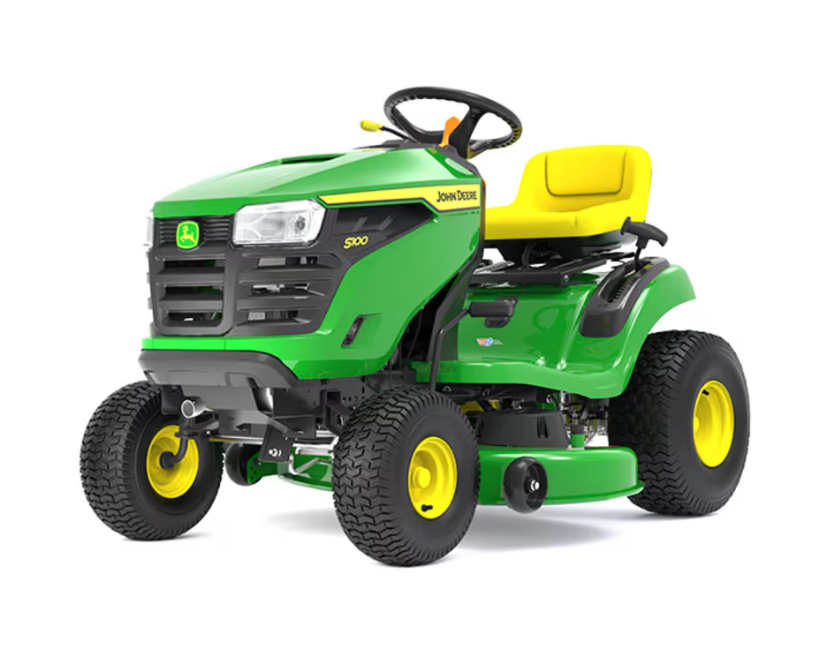

John Deere S100 — Lawn Tractor
Original price was: 1,598.00$.799.00$Current price is: 799.00$.
- Estimated Delivery: 10 Business Days
- Free Shipping & Returns: On all orders.
Granted Safety And Secure checkout
17.5-hp (13.0-kW) Engine
Engine Oil Filter and Fuel Filter
A 17.5-hp (13.0-kW), single-cylinder engine provides ample power and torque to handle tough mowing, mulching, and bagging tasks:
- Electronic Ignition: Ensures fast starts.
- Spring-Return Feature: Prevents the operator from mistakenly leaving the throttle lever in the choke position.
- Cast-Iron Cylinder Liner: Designed for long engine life.
- Overhead Valves: Offer excellent power and fuel economy.
- Anti-Vibration System: Enhances comfort during operation.
- Full-Pressure Lubrication: Includes an oil filter for cleaner oil, prolonging engine life and extending the time between oil changes.
- More effective when operating the tractor on an incline.
- Large Fuel Filter: Ensures trouble-free operation.
No-Tools Oil Drain Valve
The no-tools oil drain valve is easily accessible when changing engine oil.
Fuel Tank
Convenient Fuel Filler Opening
- Capacity: 2.4 U.S. gal. (9.1 L).
- Conveniently Located: The fuel filler opening is located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap adds convenience.
- The sealed fuel cap helps keep vapors inside the tank.
17.5-hp (13.0-kW) Engine
Engine Oil Filter and Fuel Filter
A 17.5-hp (13.0-kW), single-cylinder engine provides ample power and torque to handle tough mowing, mulching, and bagging tasks:
- Electronic Ignition: Ensures fast starts.
- Spring-Return Feature: Prevents the operator from mistakenly leaving the throttle lever in the choke position.
- Cast-Iron Cylinder Liner: Designed for long engine life.
- Overhead Valves: Offer excellent power and fuel economy.
- Anti-Vibration System: Enhances comfort during operation.
- Full-Pressure Lubrication: Includes an oil filter for cleaner oil, prolonging engine life and extending the time between oil changes.
- More effective when operating the tractor on an incline.
- Large Fuel Filter: Ensures trouble-free operation.
No-Tools Oil Drain Valve
The no-tools oil drain valve is easily accessible when changing engine oil.
Fuel Tank
Convenient Fuel Filler Opening
- Capacity: 2.4 U.S. gal. (9.1 L).
- Conveniently Located: The fuel filler opening is located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap adds convenience.
- The sealed fuel cap helps keep vapors inside the tank.
Specification
| Engine power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Oil change | No-tools oil drain with replaceable filter | |||
| Engine manufacturer/model | 31R977 (M31) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20×8-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 17.5 hp 13 kW |
|||
|---|---|---|---|---|
| Displacement | 30.5 cu in. 500 cc |
|||
| Manufacturer/model | 31R977 (M31) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | One | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | No-tools oil drain with replaceable filter |
| Type | Gasoline | |||
|---|---|---|---|---|
| Fuel delivery | Pulse pump and carburetor | |||
| Fuel gauge | Mechanical, viewable from seat | |||
| Fuel tank location | Rear | |||
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
|||
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
|||
|---|---|---|---|---|
| Charging system | Regulated, 8 amp | |||
| Engine starter | Bendix type | |||
| Hour meter | Yes | |||
| Headlights | Two standard, incandescent | |||
| Taillights or reflector | No | |||
| Backup lights | No | |||
| Rear work lights | No | |||
| 12-V outlet | No |
| Type | Hydrostatic, 2-wheel drive | |||
|---|---|---|---|---|
| Control | Side-by-side pedals | |||
| Cruise control | No | |||
| Oil cooler | Fins and fan on transaxle | |||
| Oil filter | Yes, not serviceable | |||
| Differential lock | No | |||
| Forward speed | 0-5.5 mph 0-8.9 km/h |
|||
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
|||
| Brakes | Internal wet disk |
| Frame | Full-length welded steel | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Weight bracket | Optional rear | |||
| Receiver hitch | No | |||
| Front axle | Cast-iron front axle, front wheel sealed ball bearings | |||
| Spindle bushings | No | |||
| Front tires | 15×6-6 | |||
| Rear tires | 20×8-8 | |||
| Hood material | Molded-in color material reduces sound, will not rust or dent | |||
| Fender deck material | Stamped steel | |||
| Floor mats | Yes, with debris removing channels | |||
| Storage | Storage tray with optional cover | |||
| Service interval decal | Yes | |||
| Fender handles/grips | No | |||
| Cup holder | Yes | |||
| Equipment mounting | CargO Mount™ system | |||
| Maximum towing capacity | 500 lb 227 kg |
| Type | Sector and pinion with single drag link and tie rod | |||
|---|---|---|---|---|
| Four-wheel steer | Not available on this model | |||
| Steering wheel | Standard, diameter – 12 in. 30.5 cm |
|||
| Tilt steering wheel | No | |||
| Turning radius | 18 in. 45.7 cm |
|||
| Uncut circle radius | 25 in. 63.5 cm |
| Type | One piece | |||
|---|---|---|---|---|
| Seat back height | 11 in. 28 cm |
|||
| Armrests | No | |||
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
|||
| Seat suspension | Tilt, two coil springs |
| Type | Spring-assisted hand-grip lever | |||
|---|---|---|---|---|
| Hydraulic outlets | No | |||
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | No |
| Type | Side discharge | |||
|---|---|---|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| Construction | Stamped steel deck shell | |||
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
|||
| Mower wash port | Yes | |||
| Mower drive system | Manual power take-off (PTO) | |||
| Mower wheels | Two | |||
| Mower wheel adjustment | One bolt | |||
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor | |||
|---|---|---|---|---|
| Front draft arms | One spring clip | |||
| Rear draft arms | Two spring clips | |||
| Mower wheels rotate | No | |||
| Drive system | Single belt |
| Meets ANSI standard | Yes | |||
|---|---|---|---|---|
| Meets OPEI standard | Yes | |||
| Backup protection | Reverse Implement Option (RIO) | |||
| Safety video | Yes |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame |
|||
|---|---|---|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |

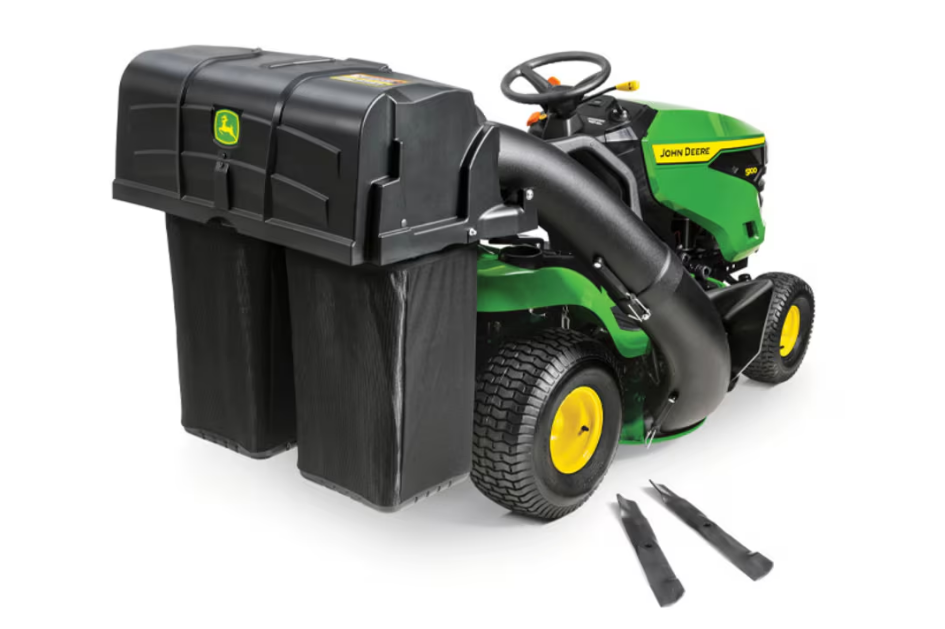

| Rear bagger | 2-bag, 6.5 bu 229 L |
|||
|---|---|---|---|---|
| Mulching system | Mulch cover or high-performance plug | |||
| Front blade | 46 in. 116.8 cm |
|||
| Snow blower | Two-stage, 44 in. 111.8 cm |
|||
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
|||
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
|||
| Front bumper | Styled front bumper | |||
| Weather protection | Weather enclosure | |||
| Sun canopy | Sun canopy | |||
| Bucket holder | Yes, single bucket | |||
| Grass striping | Lawn striping kit | |||
| Tow-behind tools | 16 |
| Height | 40 in. 1016 mm |
|||
|---|---|---|---|---|
| Overall length | 69.7 in. 1770 mm |
|||
| Wheelbase | 48.9 in. 1242 mm |
|||
| Width with mower | 55.2 in. 1402 mm |
|||
| Width with mower (deflector raised for storage) | 46.5 in. 1181 mm |
|||
| Width without mower | 39.2 in. 996 mm |
|||
| Weight | Mower, no fuel, 414 lb 188 kg |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Apr-2024 |
